● Upgradeable design can meet users' current and future process requirements, achieving maximum return on investment

● High precision X-Y-Z mobile system

● High precision full system dispensing, including glue points and glue lines

● Patent closed-loop process control ensures consistency in dispensing volume during continuous production

● The independent X-Y-Z axis dual valve synchronous dispensing option can effectively increase production

● Integrated visual system, providing coaxial or off-axis illumination methods

● Up to 6 heating platforms can be selected

● Programmable dual axis tilt option

The upgradable Spectrum II series dispensing system is an ideal choice for advanced dispensing processes to achieve mass production, including bottom filling, cavity filling, chip bonding, and encapsulation.

Upgradeability.With its flexible and upgradable features, SpectrumII can be configured to use single or double tracks, with up to six heating platforms available in the double track configuration. When the process needs to be changed, the platform can be easily upgraded on site.

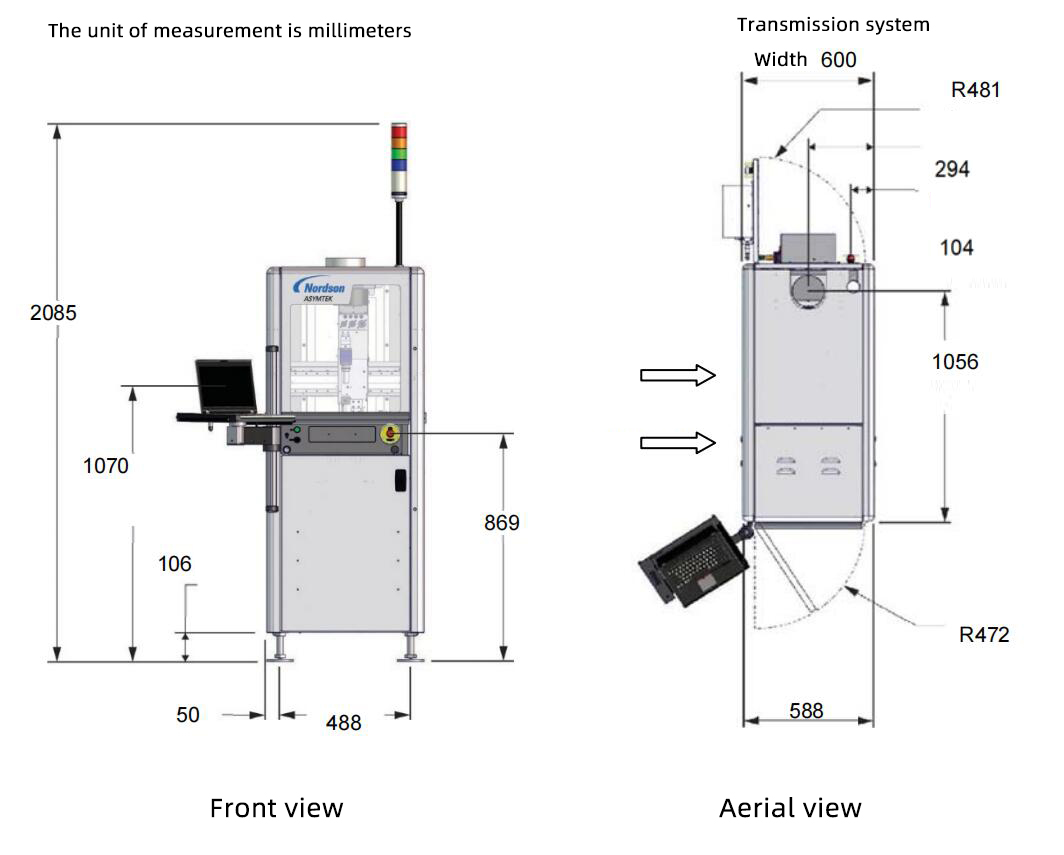

Without selecting a pre heating or post heating platform, the width of SpectrumII is only 600 millimeters, making full use of valuable factory space.

Advanced process control. Spectrum II reduces process variables, increases production capacity, and reduces costs. The temperature, adhesive amount, and air pressure controlled by software provide closed-loop control, reducing manual adjustment by operators. The Automatic Process Calibration Spray Technology (CPJM) can ensure the repeatability of adhesive volume over a long production process. The process control heater (CpH) adopts programmable thermal management to achieve better thermal efficiency.

The SpectrumII standard digital imaging system features adjustable RGB tri color LEDs with higher brightness, providing high-quality image contrast and observation effects for more accurate and consistent pattern recognition. For most challenging visual applications, the Monocle Vision Pack (MVP) further enhances contrast effects, field of view, and resolution.

Nozzle and valve technology.You can customize SpectrumII to meet specific process requirements through industry-leading ASYMTEC nozzle and valve technology. We offer a range of options, including our popular nozzles and time pressure valves, as well as the latest screw pumps.

Professional value and support.With nearly 40 years of accurate dispensing experience and an excellent reputation for optimal closed-loop process control, Nordson is a reliable partner for dispensing development and production. From initial process development to full-scale production, users will always receive support from our global engineering experience, application development, and technical service network.
