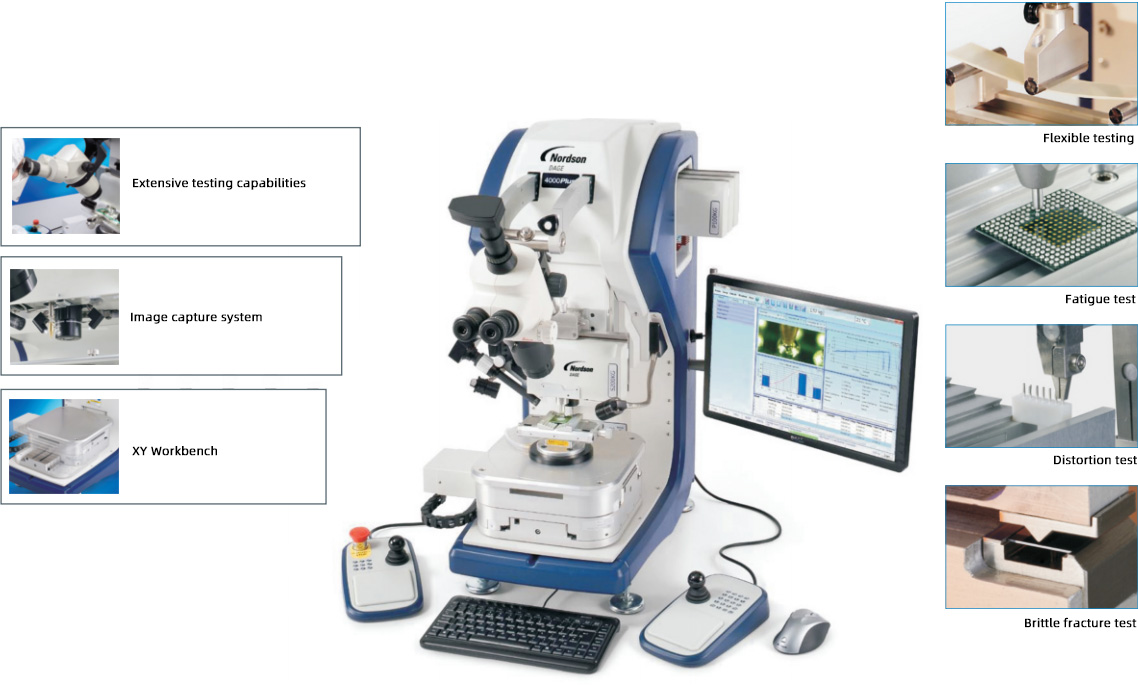

Whether in the semiconductor industry or various microelectronics industries such as automotive, power, hybrid, or high reliability, the Nordson DAGE 4000Plus demonstrates versatility and precision, giving its users confidence in the quality of its products. It adopts the latest patented welding strength testing technology (such as anti backlash system). The testing range of Nordson DAGE 4000Plus is 250 milligrams to 500 kilograms, suitable for both standard and professional applications. Additionally, it is worth mentioning that the 4000Plus was developed based on the success of the Nordson DAGE 4000, ensuring data correlation between machines.

Configurability

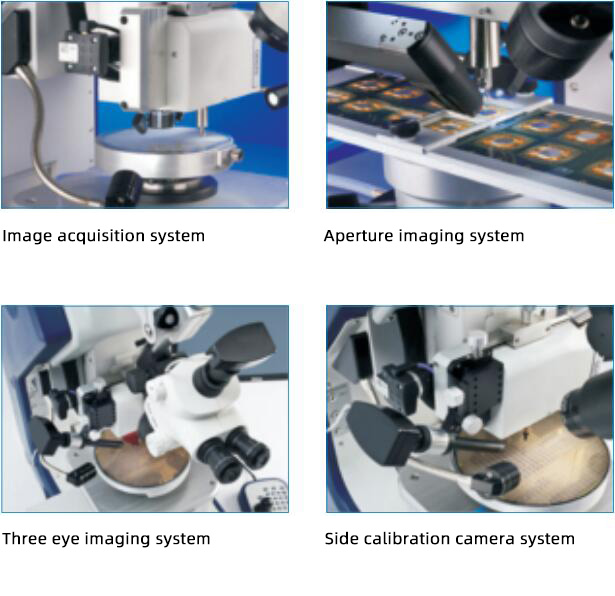

The Nordson DAGE 4000Plus provides industry-leading versatility. On one axis of the XY workbench, a stroke of up to 300mm can be selected, and its unique testing module includes a pressure testing module that can test up to 50 kilograms, a tensile testing module that can test up to 100 kilograms, and a shear testing module that can test up to 200 kilograms (with a special fixture that can cut up to 500 kilograms). A wide range of test heads provide standard and professional applications. A wide range of optical lens options are suitable for various applications. The vertical working area of the machine standard reaches 120mm, which meets the vast majority of applications. If you have any special requirements, please consult the factory in detail.

Data correlation

Nordson DAGE recognizes that data correlation is the foundation for cross referencing test results between old and new platforms. Existing users of Nordson DAGE welding strength testers (4000 Optima and 4000) can confidently compare data between old and new machines. In addition, we know that many users collect data on the same product from different machines, whether at the same point or in different locations, and need to ensure the integrity of the data's interconnection under the same configuration and testing parameters.

In order to demonstrate the interrelationship between old and new machines, Nordson DAGE has conducted a detailed internal GR&R study. 4000Plus plays an important role in data association, but our welding strength testing software ParagonTM is equally important. Importing and exporting protocols and database management tools can also ensure comparability of data streams between new and old machines.

Integrity of data

The 4000Plus has excellent repeatability and reproducibility of results, with an overall system accuracy of+/-0.1% of the selected range (please refer to detailed specifications).

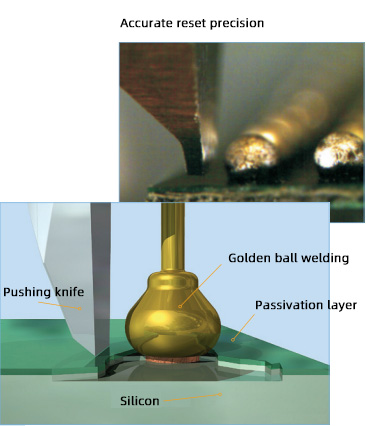

Accurate reset precision

The control (reset) of the cutting height is crucial for achieving consistent test results in cutting applications. Nordson DAGE has developed a patent for a unique anti backlash system that can be used to assist in setting and controlling resets. The cutting height can be set and maintained with a precision of one micrometer throughout the entire testing range. In addition, on the S25G test module, the highest reset accuracy is+/-0.25 micrometers. The reset accuracy has been verified through laser measurement.

Traceability of data

The 4000Plus is calibrated according to international standards, providing detailed traceability and data integrity for product testing. Calibrate using the traceable national standard O.I.M.L grade M1 tolerance standard; UKAS or optional NIST Level 1 weighting.

Automatic loading tool alignment

The optional self aligning shear tool sleeve ensures the correct load is applied by compensating for misaligned mold connections.

Nordon DAGE Paragon Welding Strength Testing Software

Reduce costs

Minimize downtime

The robust design of the 4000Plus has been thoroughly tested and verified to ensure excellent reliability. A new ergonomic design for the testing module significantly improves the handling of module replacement on machines and reduces the risk of damage. In addition, the 4000Plus is manufactured according to the ISO 9001 standard: 2008, in compliance with the Machinery Safety Directive, Low Voltage Directive, EMC regulations, SEMI safety policy (S2 ESH and RoHS), and UL design requirements.

Compatibility

The design of the 4000Plus has always considered continuity. Some accessories of the Nordson DAGE 4000 are forward compatible with the 4000Plus, so you can use existing equipment inventory and upgrade at your own pace.

Intelligent software

The 4000Plus uses Nordson DAGE's next-generation Paragon TM software. Paragon has great configurability and intuitive interface, as well as various advanced features such as automatic GR&R calculations, built-in diagnostics, a range of charts, and a unique database search engine wizard. Excellent reporting capabilities enable the creation of personalized reports and provide the ability to easily manipulate data using interactive graphics.

Switch applications in just a few seconds

The unique multifunctional testing module (MFC) in the industry can be used in conjunction with the automatic testing program on the 4000Plus welding strength tester to achieve complex mixed packaging multi surface testing modes and ultra fast application conversion.

Unique multifunctional testing module

Unique features of industry-leading multifunctional testing modules

Ensure the correlation between the 4000 and 40000 Plus test modules

The operator can easily identify which sensor through the test module window

● Active when not in use

● The 'parking position' protects the sensors inside the testing module, rather than allowing them to

● One of them was exposed and damaged

● Quickly and conveniently exchange with single function testing modules

● Record the true load without friction tension

● Patented air bearing technology for shear testing

● Minimum off-axis deflection

● Automatic electromagnetic damping at low loads

● Dual application calibration fixture

● Most of the control electronic components and rotating mechanisms are located inside the testing module

● To ensure zero machine downtime and convenient maintenance

● Unique welding wire tension damping system

Nordson's industry standard: DAGE 4000plus meets and in many cases exceeds

4000Plus testing module, XY worktable, and Z-axis

Nordson DAGE provides comprehensive testing modules that support standard and customized welding strength testing applications. 500kg strong shear fixtures are available for selection - please consult the factory for more details. The above list is not unique - our experienced engineers can provide recommendations for each application. The detailed specifications of individual test modules can be found in separate publications.

Multi-functional box

XY Stage

According to your testing requirements, we can provide various XY workbenches. This list is not unique, you should consult the factory for special applications.

Z-axis and workspace

Specifications

Precision
